Cabinet Size：500*500mm/1000mm
Pixel Pitch：P2.6/2.97/3.91/4.81
Drive Mode：Common Anode/Common cathode
Service Way：Front Service/Rear service/span>
LED lamp：SMD
Brightness：3000~6500CD/m²
| Item | E1.95 | E2.6/EH2.6 | E3.12/EH3.12 | E3.91/EH3.91 | E4.81 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.95 | 2.6 | 3.12 | 3.91 | 4.81 |

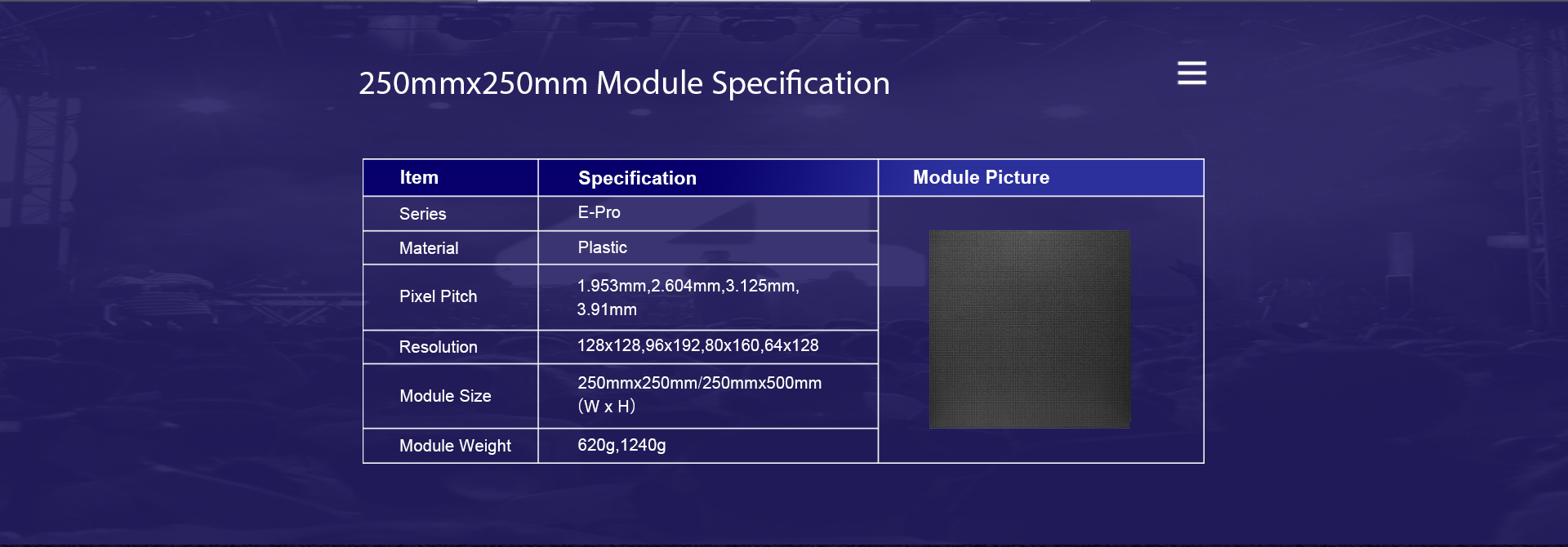

| Module Size（mm*mm） | 250*250 | ||||
| Module Resolution（L*W) | 128*128 | 96*96 | 80*80 | 64*64 | 52*52 |
| Scanning mode | 1/32 | 1/32 | 1/27 | 1/16 | 1/13 |
| LED Configuration | 1R1G1B | ||||
| LED Type | SMD1515 | SMD2121 | SMD1921 | ||
| IP grade | IP45 | IP45/65 | IP65 | ||
| Maintenance | Front/Back service | ||||
| brightness | 600-800 | 800-1000/5000-5500 | 5000-5500 | ||

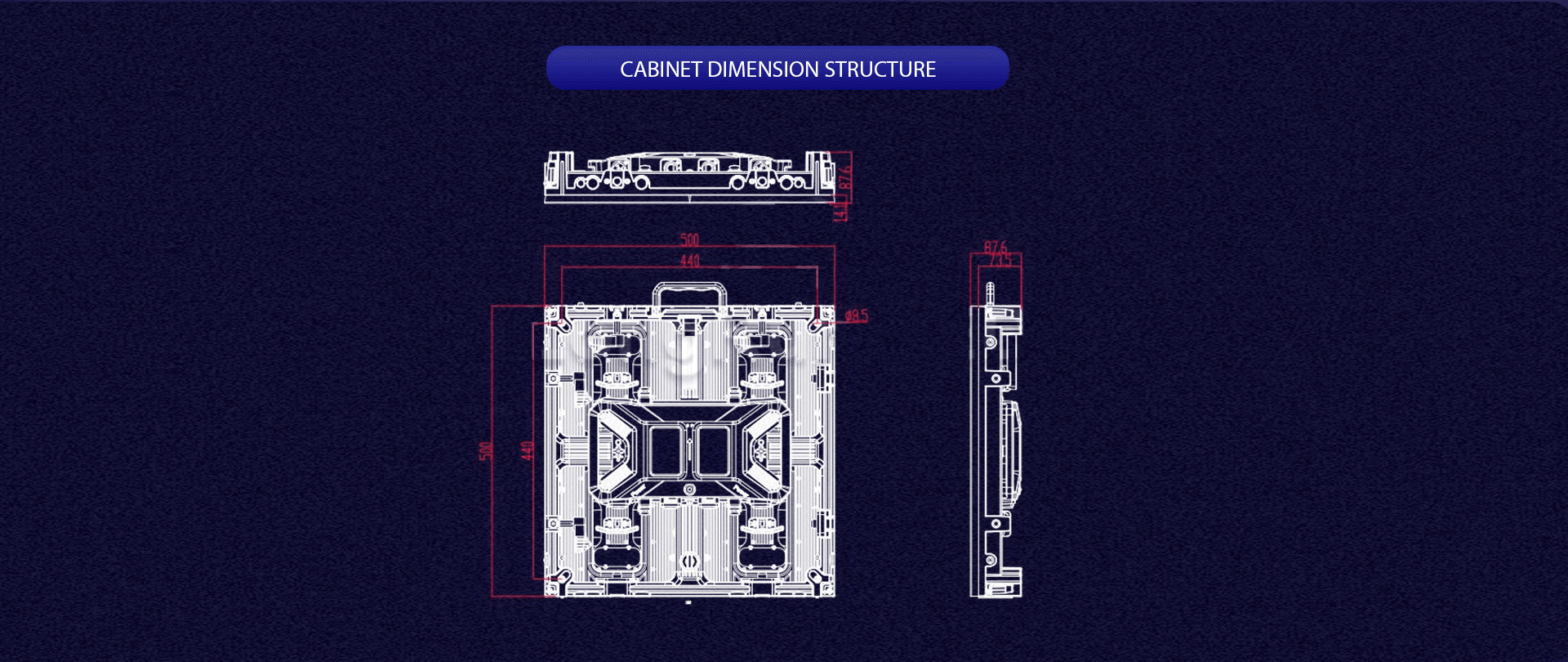

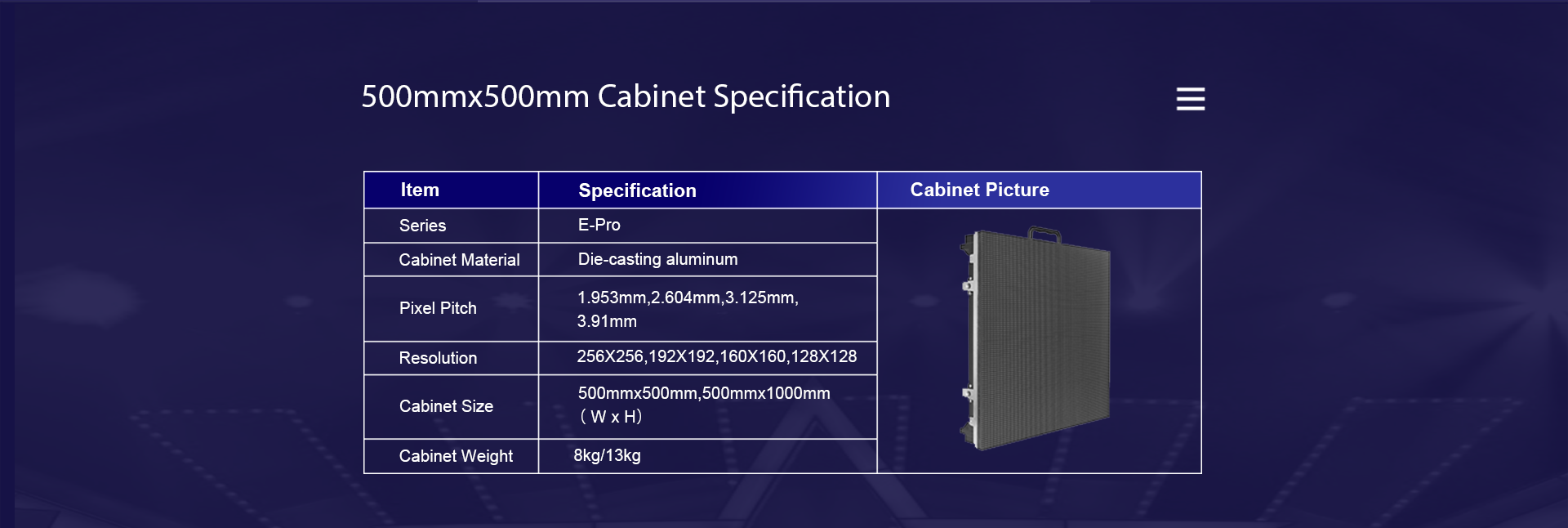

| Cabinet Size（mm*mm） | 500*500*90 | 500*500/1000*90 | |||
| Physical Density（dot/m²） | 262144 | 147456 | 102400 | 65536 | 43264 |
| Cabinet Max Power Consumption | 650W | 650W/800W | 800W | ||
| Cabinet Aver. Power Consumption | 200W | 200W/250W | 250W | ||
| Cabinet Weight（KG) | 7.3kg | 7.3kg/11kg | 11kg | ||
| Cabinet Material | Die-casting aluminum | ||||
| Contrast Ratio | ≥5000:1 | ||||
| Grey Scale | 14bit | ||||
| Refresh Rate（Hz） | ≥3840Hz | ||||
| Refresh Frame Frequency（Hz） | 50Hz-60Hz | ||||
| Horizontal View Angle（Deg） | ≥140° | ||||
| Vertical View Angle（Deg） | ≥120° | ||||
| Best Viewing Distance（M） | 3M | 3M | 4M | 4M | 5M |
| Input Voltage（V） | AC110Vz~AC220V | ||||
| Module Max Current（A) | 8.5A | 16A/10A | 16A/10A | 16A/20A | 20A |
| Working Temperature（℃） | -30℃+80℃ | ||||
| Working Humility（RH） | 10％RH~95％RH | ||||
| Life Span（H) | ≥100000 | ||||
| MTBF（H) | ≥10000 | ||||
