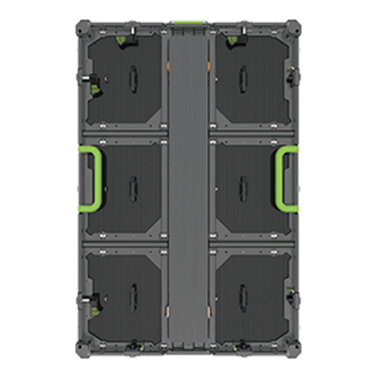

Cabinet Size：640*960mm*80mm
Pixel Pitch：P5.95/P8
Drive Mode：Common Anode/Common cathode
Service Way：Front Service
LED lamp：SMD
Brightness：6000~9000CD/m²
| Item | FH5.95 | FH8 |
|---|---|---|
| Pixel Pitch (mm) | 5.95 | 8 |
| Module Size（mm*mm） | 320*320 | |
| Module Resolution（L*W) | 54*54 | 40*40 |
| Scanning mode | 1/7 | 1/3 |
| LED Configuration | 1R1G1B | |
| LED Type | SMD2727 | |
| IP grade | IP65 | |
| Maintenance | Front service | |
| Cabinet Size（mm*mm） | 640*960*80 | |
| Cabinet Resolution（L*W) | 108*162 | |
| Physical Density（dot/m²） | 28476 | 15625 |
| Brightness（cd/m²） | 6000-9000 | |
| Cabinet Max Power Consumption | 600W | 600W |
| Cabinet Aver. Power Consumption | 200W | 200W |
| Cabinet Weight（KG) | 27kg | |
| Cabinet Material | Die-casting aluminum | |
| Contrast Ratio | ≥5000:1 | |
| Grey Scale | 14bit | |
| Refresh Rate（Hz） | 1920Hz/3840Hz | |
| Refresh Frame Frequency（Hz） | 50Hz-60Hz | |
| Horizontal View Angle（Deg） | ≥140° | |
| Vertical View Angle（Deg） | ≥120° | |
| Best Viewing Distance（M） | 6M | 8M |
| Input Voltage（V） | AC110Vz~AC220V | |
| Module Max Current（A) | 6A+10A | |
| Working Temperature（℃） | -40℃+80℃ | |
| Working Humility（RH） | 10％RH~80％RH | |
| Life Span（H) | ≥100000 | |
| MTBF（H) | ≥10000 | |
