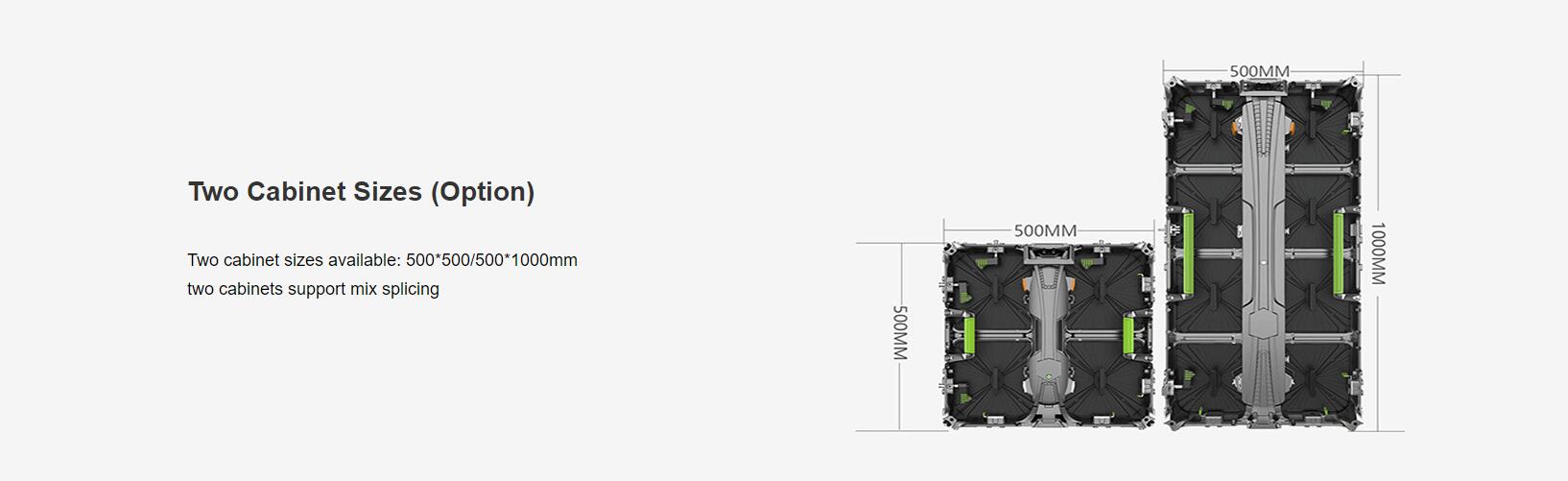

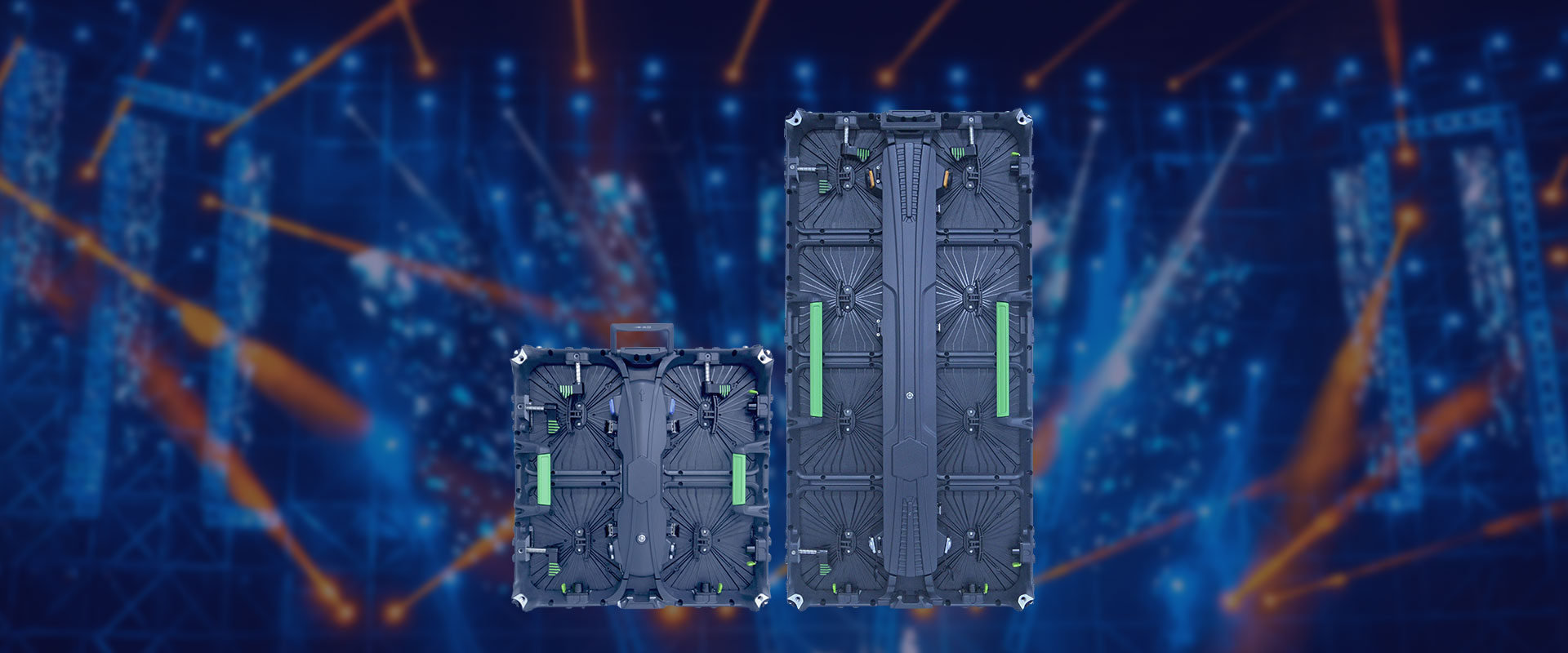

Cabinet Size：500*500mm/1000mm
Pixel Pitch：P2.6/2.97/3.91/4.81
Drive Mode：Common Anode
Service Way：Front Service/Rear service
LED lamp：SMD
Brightness：3000~6500CD/m²
| Item | E2.60 | E2.97 | E3.91 | EH3.91 | EH4.81 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2.6 | 2.97 | 3.91 | 3.91 | 4.81 |
| Module Size（mm*mm） | 250*250*16 | ||||
| Module Resolution（L*W) | 96*96 | 84*84 | 64*64 | 64*64 | 52*52 |
| Scanning mode | 1/32 | 1/28 | 1/16 | 1/16 | 1/13 |
| LED Configuration | 1R1G1B | ||||
| LED Type | SMD1515 | ||||
| work environment | Indoor | Outdoor | |||
| IP grade | IP45 | IP65 | |||
| Maintenance | Front/Back service | Back service | |||
| brightness | 600-900 (indoor） | 1000-3300（outdoor） | |||
| Cabinet Size（mm*mm） | 500*500*90 | 500*500*90 | 500*500/1000*90 | 500*500/1000*90 | 500*500/1000*90 |
| Cabinet Resolution（L*W) | 192*192 | 168*168 | 128*128/128*256 | 128*128/128*256 | 104*104/104*208 |
| Physical Density（dot/m²） | 147456 | 112896 | 65536 | 65536 | 43264 |
| Cabinet Max Power Consumption | 650W | 650W | 650W | 800W | 800W |
| Cabinet Aver. Power Consumption | 200W | 220W | 220W | 260W | 260W |
| Cabinet Weight（KG) | 7.3kg | 7.3kg | 7.3kg | 7.3kg/11kg | 7.3kg/11kg |

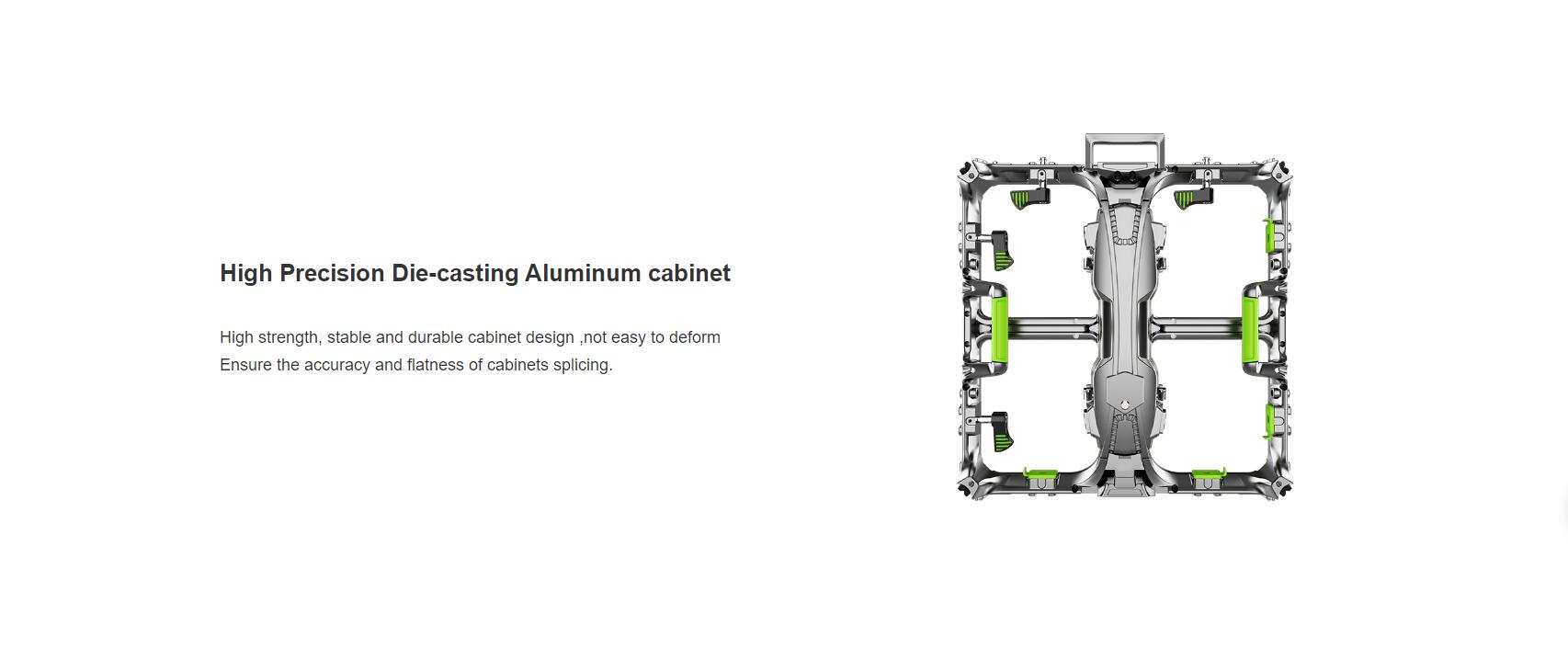

| Cabinet Material | Die-casting aluminum | ||||
| Contrast Ratio | ≥5000:1 | ||||
| Grey Scale | 14bit | ||||
| Refresh Rate（Hz） | ≥3840Hz | ||||
| Refresh Frame Frequency（Hz） | 50Hz-60Hz | ||||
| Horizontal View Angle（Deg） | ≥140° | ||||
| Vertical View Angle（Deg） | ≥120° | ||||
| Best Viewing Distance（M） | 3M | 3M | 4M | 4M | 5M |
| Input Voltage（V） | AC110Vz~AC220V | ||||
| Module Max Current（A) | 8.5A | 8.5A | 8.5A | 12A | 12A |
| Working Temperature（℃） | -30℃+80℃ | ||||
| Working Humility（RH） | 10％RH~95％RH | ||||
| Life Span（H) | ≥100000 | ||||
| MTBF（H) | ≥10000 | ||||
