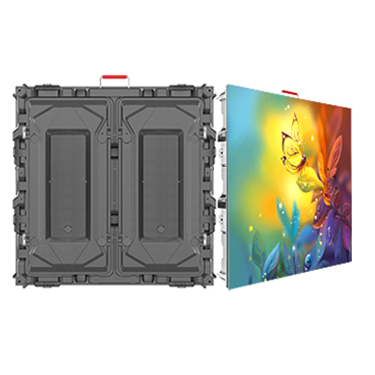

Cabinet Size：customized
Pixel Pitch：P4/5/5.7/8/10
Drive Mode：Common Anode
Service Way：Front Service
LED lamp：SMD
Brightness：3000~6500CD/m²
| Item | CH4 | CH5 | CH5.7 | CH8 | CH10 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 4.0 | 5.0 | 5.7 | 8.0 | 10 |
| Module Size（mm*mm） | 320*160*21 | ||||
| Module Resolution（L*W) | 80*40 | 64*32 | 56*28 | 40*20 | 32*16 |
| Scanning mode | 1/10 | 1/8 | 1/7 | 1/5 | 1/2 |
| LED Configuration | 1R1G1B | ||||
| LED Type | 1921 Common-cathode | 2727 Common-cathode | 2727 Common-cathode | 3535 Common-cathode | 3535 Common-cathode |
| Service Way | Back Service | ||||
| Installation Way | Back Installation | ||||
| Cabinet Size（mm*mm） | Customized | ||||
| Cabinet Resolution（L*W) | 240*240 | 192*192 | 168*168 | 120*120 | 96*96 |
| Physical Density（dot/m²） | 62500 | 40000 | 30625 | 15625 | 10000 |
| Brightness（cd/m²） | 6200~6500 | 6200~6500 | 6200~6800 | 6200~6800 | 6800~7000 |

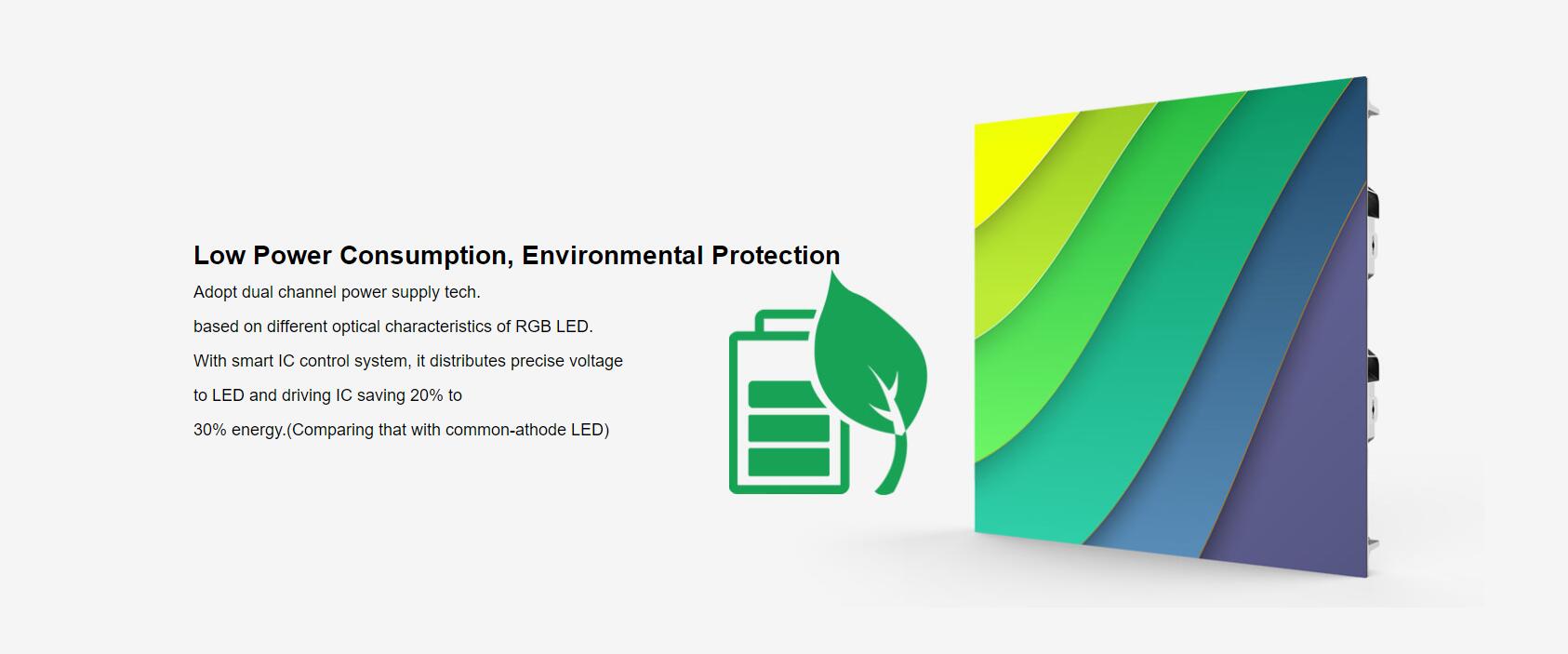

| Cabinet Max Power Consumption | 750W | 650W | 650W | 550W | 550W |
| Cabinet Aver. Power Consumption | 250W | 220W | 220W | 180W | 180W |
| Cabinet Weight（KG) | 30kg | ||||
| Cabinet Material | Aluminum Magnesium (iron/aluminum option) | ||||
| Protection Level | Face IP65 | ||||
| Contrast Ratio | ≥5000:1 | ||||
| Grey Scale | 14bit | ||||
| Refresh Rate（Hz） | ≥1920Hz | ||||
| Refresh Frame Frequency（Hz） | 50Hz-60Hz | ||||
| Horizontal View Angle（Deg） | ≥140° | ||||
| Vertical View Angle（Deg） | ≥120° | ||||
| Best Viewing Distance（M） | 4M | 5M | 6M | 8M | 10M |
| Input Voltage（V） | AC110Vz~AC220V | ||||
| Module Max Current（A) | 3.5A + 6A | 3.5A + 4.5A | 3.5A + 4.5A | 3.5A + 4.5A | 3.5A + 4.5A |
| Working Temperature（℃） | -30℃+80℃ | ||||
| Working Humility（RH） | 10％RH~95％RH | ||||
| Life Span（H) | ≥100000 | ||||
| MTBF（H) | ≥10000 | ||||
