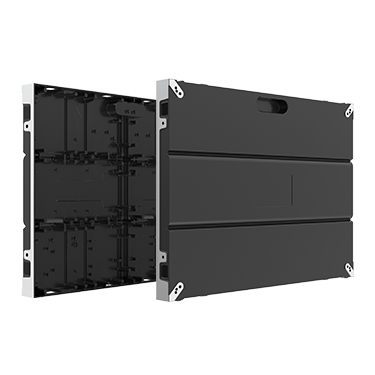

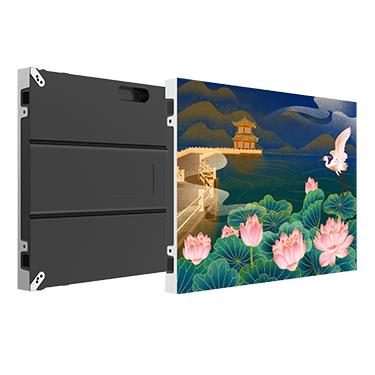

Cabinet Size：640*480*74mm
Pixel Pitch：P1.25/1.53/1.66/1.86/2/2.5/3/4
Drive Mode：Common Anode
Service Way：Front Service
LED lamp：SMD
Brightness：600~1200CD/m²
| Item | R1.25 | R1.53(GOB Option) | R1.66(GOB Option) | R1.86(GOB Option) | R2(GOB Option) | R2.5(GOB Option) | R3 | R4 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.53 | 1.66 | 1.86 | 2.0 | 2.5 | 3.0 | 4.0 |
| Module Size（mm*mm） | 320*160*18 | |||||||
| Module Resolution（L*W) | 256*128 | 120*135 | 120*135 | 96*108 | 80*90 | 60*135 | 60*135 | 60*135 |
| Scanning mode | 1/64 | 1/45 | 1/45 | 1/48 | 1/30 | 1/30 | 1/30 | 1/30 |
| LED Configuration | 1R1G1B | |||||||
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Service Way | Front Service | |||||||
| Installation Way | Front/ Rear | |||||||
| Cabinet Size（mm*mm） | 640*480*74 | |||||||
| Cabinet Resolution（L*W) | 512*384 | 415*312 | 384*288 | 344*258 | 320*240 | 256*192 | 192*144 | 160*120 |
| Physical Density（dot/m²） | 640000 | 422500 | 360000 | 288906 | 250000 | 160000 | 90000 | 62500 |
| Brightness（cd/m²） | 500~900 | |||||||
| Cabinet Max Power Consumption | 600W | 600W | 600W | 580W | 580W | 550W | 450W | 450W |
| Cabinet Aver. Power Consumption | 200W | 200W | 200W | 180W | 180W | 160W | 160W | 160W |
| Cabinet Weight（KG) | 7.5kg | |||||||

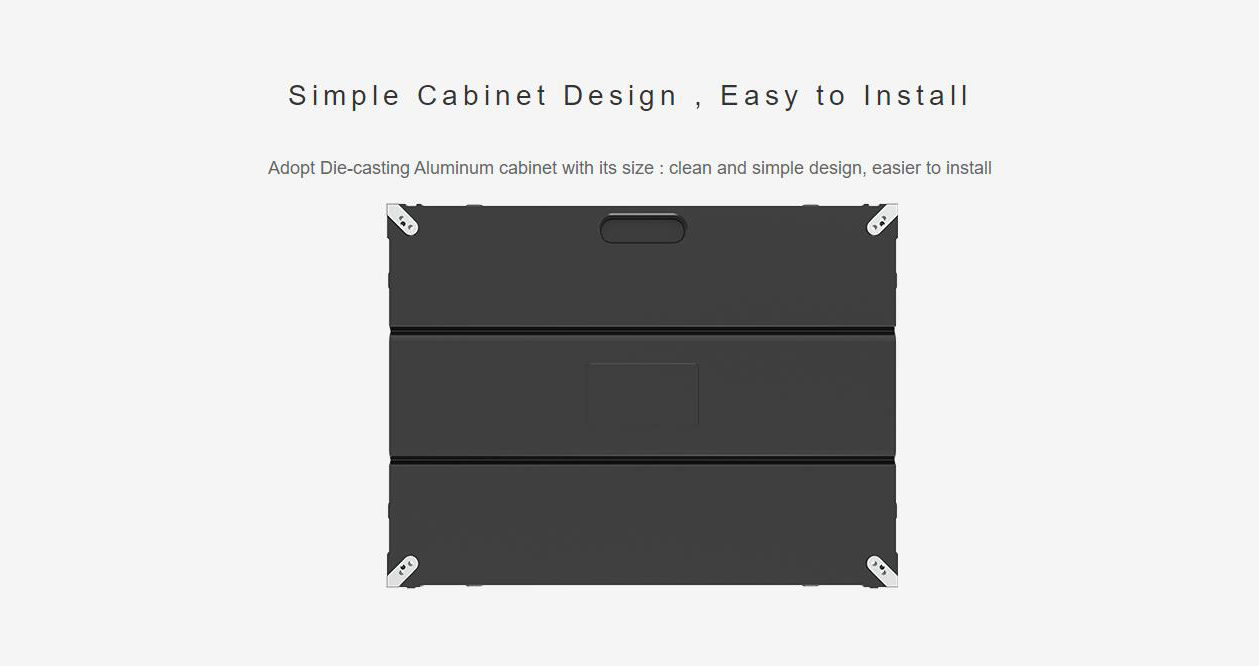

| Cabinet Material | Die-casting aluminium | |||||||
| Protection Level | IP45/PixelFace IP65 | IP45/PixelFace IP65 | IP45/PixelFace IP65 | IP45/PixelFace IP65 | IP45/PixelFace IP65 | IP45/PixelFace IP65 | IP45/PixelFace IP65 | IP45/PixelFace IP65 |
| Contrast Ratio | ≥5000:1 | |||||||
| Grey Scale | 14bit | |||||||
| Refresh Rate（Hz） | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Refresh Frame Frequency（Hz） | 50Hz-60Hz | |||||||
| Horizontal View Angle（Deg） | ≥140° | ≥140° | ≥140° | ≥140° | ≥160° | ≥160° | ≥160° | ≥160° |
| Vertical View Angle（Deg） | ≥120° | ≥120° | ≥120° | ≥120° | ≥140° | ≥120° | ≥120° | ≥120° |
| Best Viewing Distance（M） | 1.5M | 1.6M | 1.8M | 1.9M | 2M | 2.5M | 3.5M | 4M |
| Input Voltage（V） | AC110Vz~AC220V | |||||||
| Module Max Current（A) | 6A | 6A | 6A | 6A | 5A | 4.5A | 4.5A | 4.5A |
| Working Temperature（℃） | -20℃+80℃ | -20℃+80℃-5℃+60℃ | -20℃+80℃-5℃+60℃ | -20℃+80℃-5℃+60℃ | -20℃+80℃-5℃+60℃ | -20℃+80℃-5℃+60℃ | -20℃+80℃ | -20℃+80℃ |
| Working Humility（RH） | 10％RH~95％RH | |||||||
| Life Span（H) | ≥100000 | |||||||
| MTBF（H) | ≥10000 | |||||||
