Cabinet Size：customized
Pixel pitch：P0.93/1.25/1.56/1.87
Drive Mode：Common Anode
Service Way：Front Service
LED lamp：SMD
Brightness：500~900CD/m²
| Item | CV0.93 | CV1.25 | CV1.56 | CV1.87 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.56 | 1.87 |
| LED Type | Flip Chip COB Common-cathode | |||

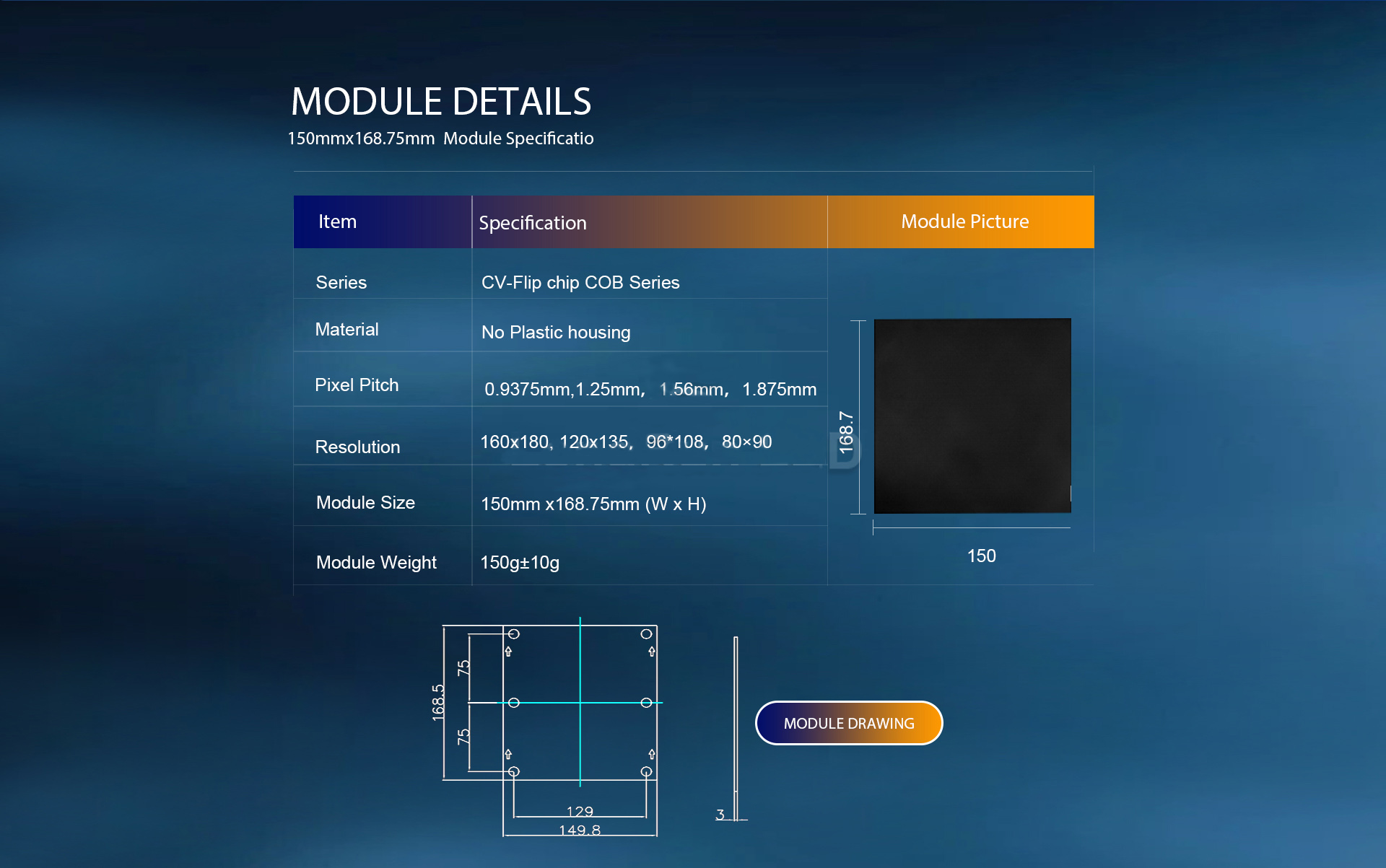

| Module Size（mm*mm） | 150*168.75 | |||
| Module Resolution（L*W) | 160*180 | 120*135 | 96*108 | 80*90 |
| Scanning mode | 1/60 | 1/45 | 1/48 | 1/30 |
| LED Configuration | COB 1R1G1B Common-cathode | |||
| Service Way | Front Service | |||
| Installation Way | Front/Back Installation | |||

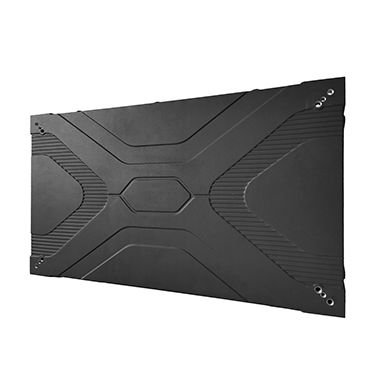

| Cabinet Size（mm*mm） | 600*337.5*50 | |||
| Cabinet Resolution（L*W) | 640*360 | 480*270 | 384*216 | 320*180 |
| Physical Density（dot/m²） | 1137778 | 640000 | 409600 | 284444 |
| Brightness（cd/m²） | 500~900 | 4500~5000 | 500~900 | 500~900 |
| Cabinet Max Power Consumption | 550W | 550W | 650W | 650W |
| Cabinet Aver. Power Consumption | 180W | 180W | 220W | 220W |
| Cabinet Weight（KG) | 7.5kg | |||
| Cabinet Material | Aluminum Magnesium | |||
| Protection Level | Face IP65 | |||
| Contrast Ratio | ≥10000:1 | |||
| Grey Scale | 14bit（Soft ware:16bit） | |||
| Refresh Rate（Hz） | ≥3840Hz | |||
| Refresh Frame Frequency（Hz） | 50Hz-60Hz | |||
| Horizontal View Angle（Deg） | ≥160° | |||
| Vertical View Angle（Deg） | ≥120° | |||
| Best Viewing Distance（M） | 1M | 1.3M | 1.6M | 1.9M |
| Input Voltage（V） | AC110Vz~AC220V | |||
| Module Max Current（A) | 4.5A + 4.2A | |||
| Working Temperature（℃） | -20℃+80℃ | |||
| Working Humility（RH） | 10％RH~95％RH | |||
| Life Span（H) | ≥100000 | |||
| MTBF（H) | ≥10000 | |||
