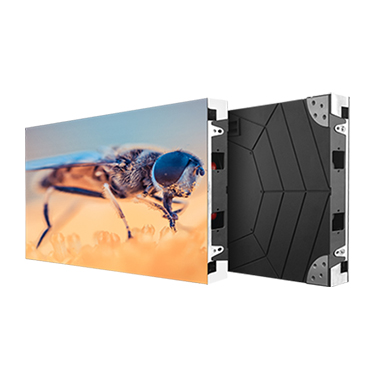

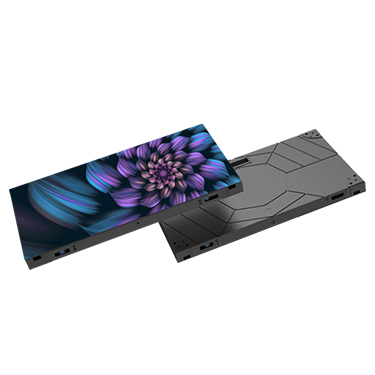

Cabinet Size：customized
Pixel pitch：P0.93/1.25/1.56/1.87/2.5
Drive Mode：Common Anode

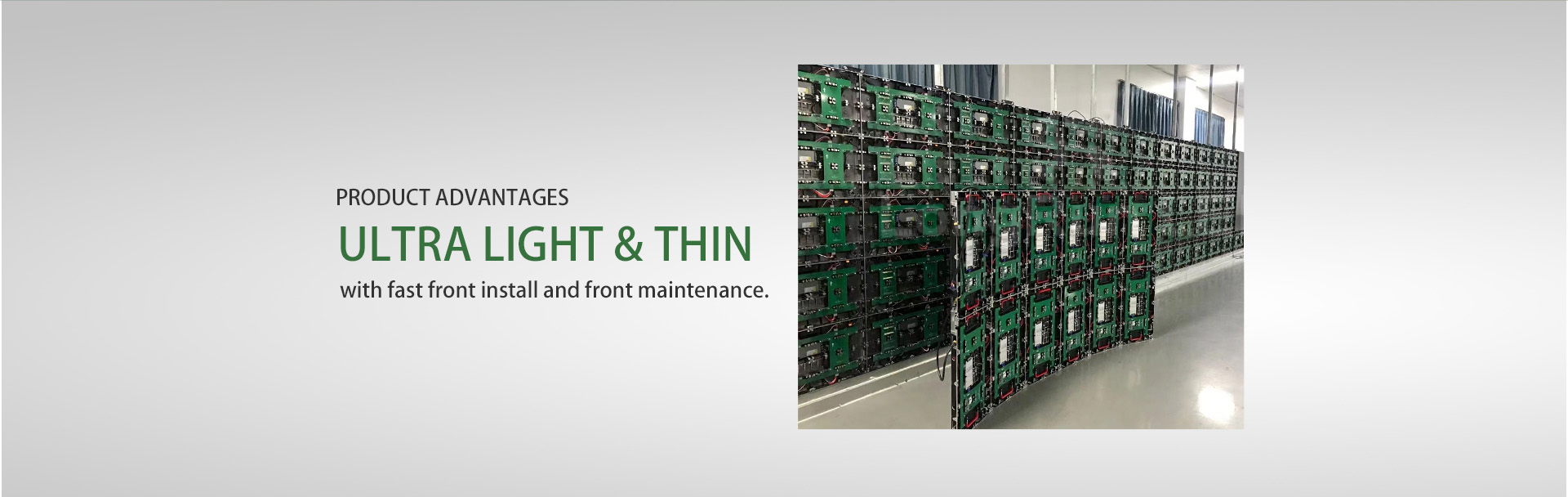

Service Way：Front Service
LED lamp：SMD
Brightness：500~900CD/m²

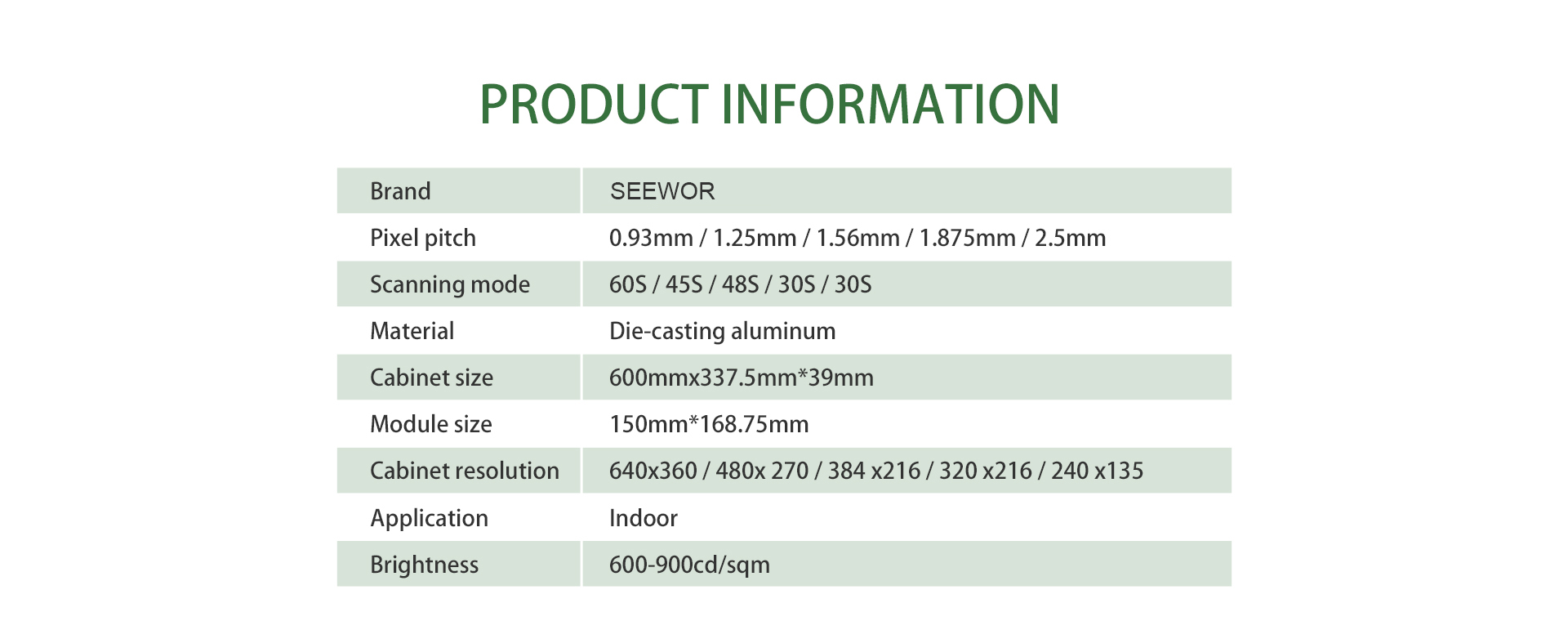

| Item | M0.93Common-cathode | M1.25Common-cathode | M1.25 | M1.56（COB） | M1.87（COB） | M2.5（COB） | ||
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.25 | 1.56 | 1.87 | 2.5 | ||
| Module Size（mm*mm） | 150*168.75 | |||||||
| Module Resolution（L*W) | 168*180 | 120*135 | 120*135 | 96*108 | 80*90 | 60*135 | ||
| Scanning mode | 1/60 | 1/45 | 1/45 | 1/48 | 1/30 | 1/30 | ||
| LED Configuration | 1R1G1B | |||||||
| LED Type | 1010 Common-cathode | 1010 Common-cathode | SMD1010 | SMD1212 | SMD1515 | SMD1515 | ||
| Service Way | Front Service | |||||||
| Installation Way | Front/Back Installation | |||||||
| Cabinet Size（mm*mm） | 600*337.5*50 | |||||||
| Cabinet Resolution（L*W) | 640*360 | 480*270 | 480*270 | 384*216 | 320*180 | 240*135 | ||
| Physical Density（dot/m²） | 1137778 | 640000 | 640000 | 409600 | 284444 | 160000 | ||
| Brightness（cd/m²） | 500~900 | 4500~5000 | 500~900 | 500~900 | 500~900 | 500~800 | ||
| Cabinet Max Power Consumption | 550W | 550W | 650W | 650W | 650W | 500W | ||
| Cabinet Aver. Power Consumption | 180W | 180W | 220W | 220W | 220W | 170W | ||
| Cabinet Weight（KG) | 7.5kg | |||||||
| Cabinet Material | Aluminum Magnesium | |||||||
| Protection Level | IP65 | Face IP65 | ||||||
| Contrast Ratio | ≥8000:1 | ≥10000:1 | ||||||
| Grey Scale | 14bit（Soft ware:16bit） | |||||||
| Refresh Rate（Hz） | ≥3840Hz | |||||||
| Refresh Frame Frequency（Hz） | 50Hz-60Hz | |||||||
| Horizontal View Angle（Deg） | ≥140° | ≥160° | ||||||
| Vertical View Angle（Deg） | ≥120° | |||||||
| Best Viewing Distance（M） | 1M | 1.3M | 1.3M | 1.6M | 1.9M | 2.5M | ||
| Input Voltage（V） | AC110Vz~AC220V | |||||||
| Module Max Current（A) | (1.5A + 2.8A)DC2.8V+3.8V | 4.5A + 4.2A | ||||||
| Working Temperature（℃） | -20℃+80℃ | |||||||
| Working Humility（RH） | 10％RH~95％RH | |||||||
| Life Span（H) | ≥100000 | |||||||
| MTBF（H) | ≥10000 | |||||||
