400mm/Φ400
VMS is important equipment for monitoring and controlling system on both freeway and arterial road applications. Depending on the traffic situation, the variable displays inform, warn, and guide the motorists on highways and expressways.
- 宽视角
- 长寿命
- 一个故障的LED 灯不会影响整个交通信号灯
- 当控制器开启，信号周期改变或从自动控制切换到手动控制时，灯将进入学习模式。
| Series | Traffic light product series | |||
|---|---|---|---|---|

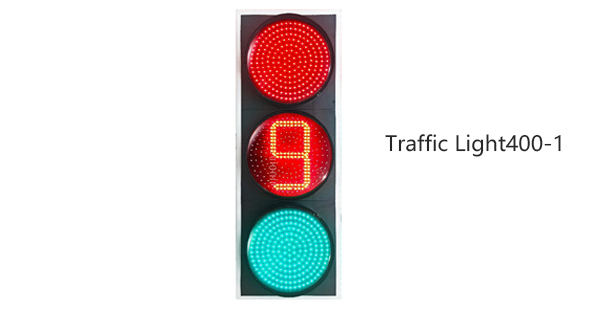

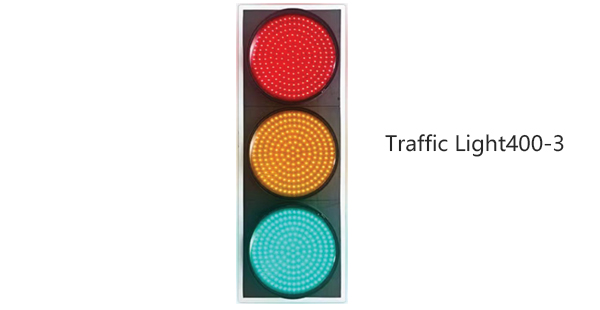

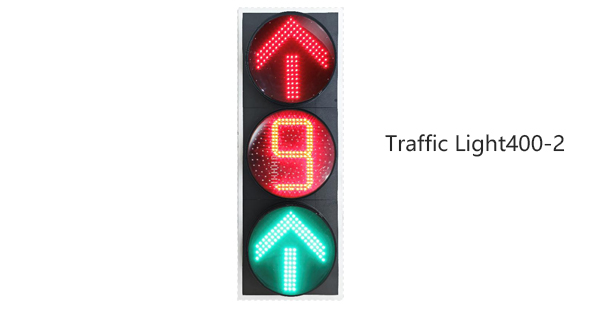

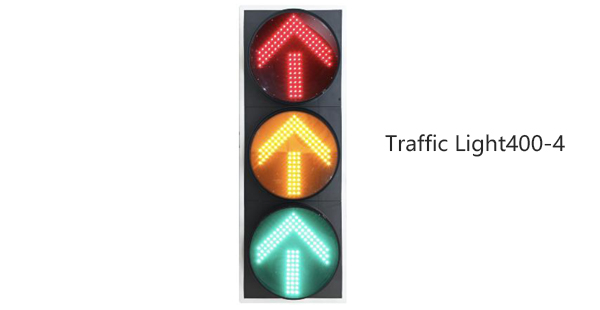

| Model | Traffic Light400-1 | Traffic Light400-2 | Traffic Light400-3 | Traffic Light400-4 |
| Product Dimensions | 1420*520*120MM (including decorative edge) | 1420*520*120MM (including decorative edge) | 1410*470*140MM | 1420*520*120MM (including decorative edge) |
| LED Composition | RYG ￠5 round tube | |||
| Light Emitting Diameter | 400mm | |||
| Visual Distance | 1-800m | |||
| Viewing Angle | 30° | |||
| Operating Temperature | -40℃ ～ +65℃ | |||
| Relative Humidity | 10%～95% | |||
| Operating Voltage | AC220V | |||
| Rated Power | ≤3W | |||
| LED Lifespan | ≥100000H | |||
| Uniformity | Uniform light intensity and brightness | |||
| Housing Material | PC | |||
| Protection Rating | IP53 | |||
| Mounting Bracket | L-shaped bracket mounting | |||
