200mm/Φ200
VMS is important equipment for monitoring and controlling system on both freeway and arterial road applications. Depending on the traffic situation, the variable displays inform, warn, and guide the motorists on highways and expressways.
- 宽视角
- 长寿命
- 一个故障的LED 灯不会影响整个交通信号灯
- 当控制器开启，信号周期改变或从自动控制切换到手动控制时，灯将进入学习模式。
| Series | Traffic light product series | |||
|---|---|---|---|---|

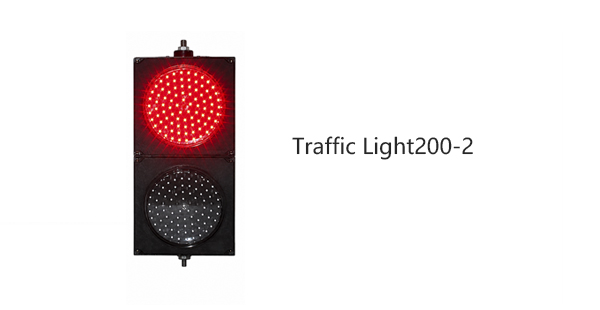

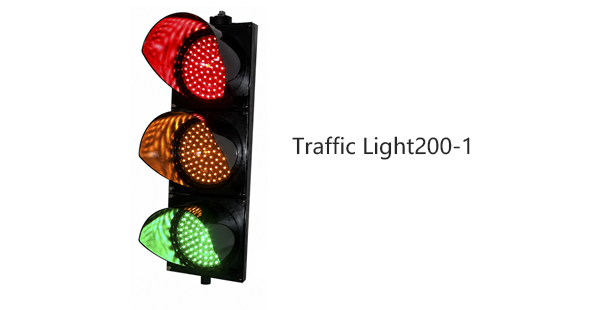

| Model | Traffic Light200-1 | Traffic Light200-2 | Traffic Light200-2 | |
| Diameter | 300mm | |||
| 产品尺寸Product Dimensions | 750*250*100mm | 500*250*100mm | 250*250*100mm | |
| 灯珠颜色 | R\G\Y | R\G | R\G\Y | |
| 灯珠类别 | Taiwan Epistar | |||
| 灯珠数量 | R/Y/G 90 pcs | R/G 90 pcs | R/G 90 pcs | |
| Red Wavelength | 620-630 nm | 620-625NM | 620-625nm | |
| Yellow Wavelength | 592-595 nm | - | - | |
| Green wavelength | 500-505/520-525 nm | 500-505NM (Blue-Green) | 500-505nm | |
| Lifespan | 100,000H | |||
| Protection Rating | PC | |||
| Operating Temperature | -40℃~65℃ | |||
| Protection Rating | IP53 | |||
| Viewing Angle | 30° | |||
| Power | R/G/Y 8W | |||
| Operating Voltage | DC12V / DC24V / AC220V | |||
| Visual Distance | ≥1000M | |||
| Mounting | Vertical mounting | |||
