300mm/Φ300
VMS is important equipment for monitoring and controlling system on both freeway and arterial road applications. Depending on the traffic situation, the variable displays inform, warn, and guide the motorists on highways and expressways.
- 宽视角
- 长寿命
- 一个故障的LED 灯不会影响整个交通信号灯
- 当控制器开启，信号周期改变或从自动控制切换到手动控制时，灯将进入学习模式。
| Series | Traffic light product series | |||
|---|---|---|---|---|

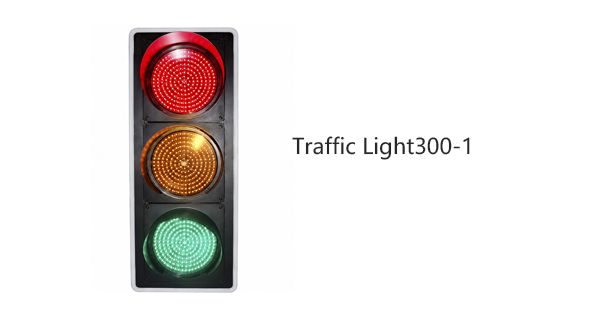

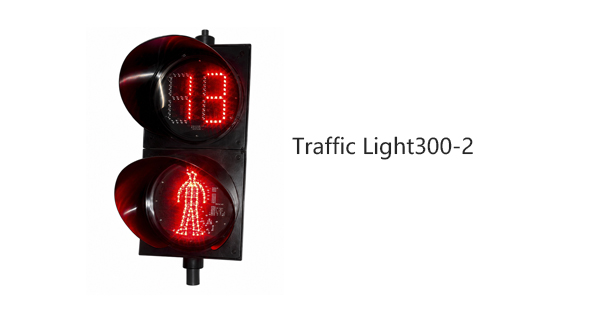

| Model | Traffic Light300-1 | Traffic Light300-2 | ||
| Diameter | 300mm | 300mm | ||
| Housing Dimensions | 1050*350*130mm | 750*350*100mm | ||
| LED Quantity | Red pedestrian light 65 pcs Green pedestrian light 120 pcs Dual 8 Green | R/Y/G 156 pcs | ||
| LED Chip | Taiwan Epistar | Taiwan Epistar | ||
| Red Wavelength | 620-625NM | 620-625NM | ||
| Yellow Wavelength | - | 590-595NM | ||
| Green Wavelength | 520-525NM (Emerald Green) | 500-505NM (Blue-green) | ||
| Lifespan | 100,000H | |||
| Protection Rating | PC | |||
| Operating Temperature | -40℃~65℃ | |||
| Protection Rating | IP53 | |||
| Viewing Angle | 30° | |||
| Operating Voltage | 220V | |||
| Visual Distance | ≥1000M | |||
| Mounting | Horizontal or vertical | Vertical mounting | ||
